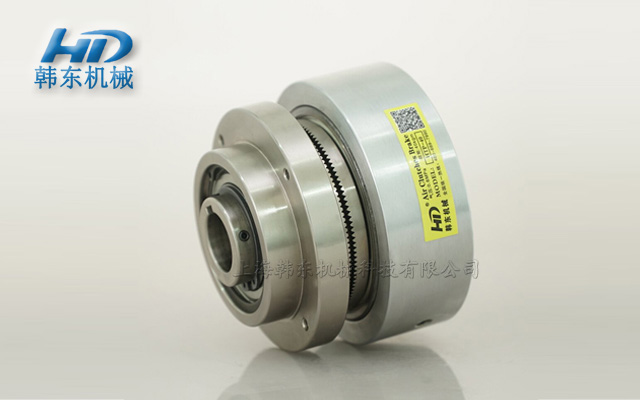

As a key transmission component in industrial equipment, the stability of the performance of the toothed pneumatic clutch is crucial for the operation of the entire system. However, due to various reasons, the toothed pneumatic clutch may malfunction. The following is an overview of the diagnosis and troubleshooting methods for common faults in toothed pneumatic clutches.
Common fault diagnosis
Smooth engagement or disengagement: Check if the pneumatic control system of the clutch is working properly, including the smoothness of the air path and the stability of the air pressure.
Abnormal noise: If the clutch makes abnormal noise during operation, it may be due to poor gear engagement or damaged bearings.
Overheating phenomenon: Clutch overheating may be caused by insufficient lubrication or excessive load.
Wear issue: Check the wear of the gears, bearings, and other contact parts of the clutch.
Leakage issue: Check if there is any leakage in the seals of the pneumatic system.
Response delay: If the clutch response is delayed, it may be due to insufficient response speed of the control system or air path blockage.
Synchronization issue: In multi-stage transmission systems, synchronization issues may lead to malfunctions of the toothed pneumatic clutch.
Troubleshooting methods
Cleaning and inspection: Regularly clean the clutch and check all components for signs of damage or wear.
Lubrication maintenance: Ensure that the clutch is properly lubricated and regularly replace lubricating oil or grease.
Pneumatic system inspection: Check the air pressure and flow rate of the pneumatic system to ensure that it is working properly.
Component replacement: Replace worn or damaged components in a timely manner.
Adjust synchronizer: If there is a synchronization issue, adjust the synchronizer to ensure correct gear engagement.
Control system inspection: Check the settings and response speed of the control system, and make adjustments if necessary.
Seal replacement: For seals with leaks, replace them in a timely manner to prevent air leakage.
Bearing inspection: Check if the bearings are running smoothly, and replace them immediately if there are any abnormalities.
Load adjustment: If the clutch overheats due to excessive load, adjust the load or increase cooling measures.
Professional technical support: For complex or difficult to solve faults, professional technical support should be sought.
preventive measure
Regular maintenance: Develop and follow a regular maintenance plan to prevent malfunctions from occurring.
Operation training: Ensure that operators receive appropriate training to understand the correct use and maintenance requirements of the clutch.
Use high-quality components: Use manufacturer recommended high-quality components and lubricants.
Recording and analysis: Record the frequency and pattern of faults, analyze possible causes, and take corresponding preventive measures.
Environmental control: Ensure that the clutch operates under suitable environmental conditions, avoiding the effects of extreme temperature and humidity.
Through the above diagnostic and troubleshooting methods, common faults of toothed pneumatic clutches can be effectively identified and solved, ensuring the stable operation and production efficiency of industrial equipment. The implementation of preventive measures is also key to reducing the occurrence of failures.
